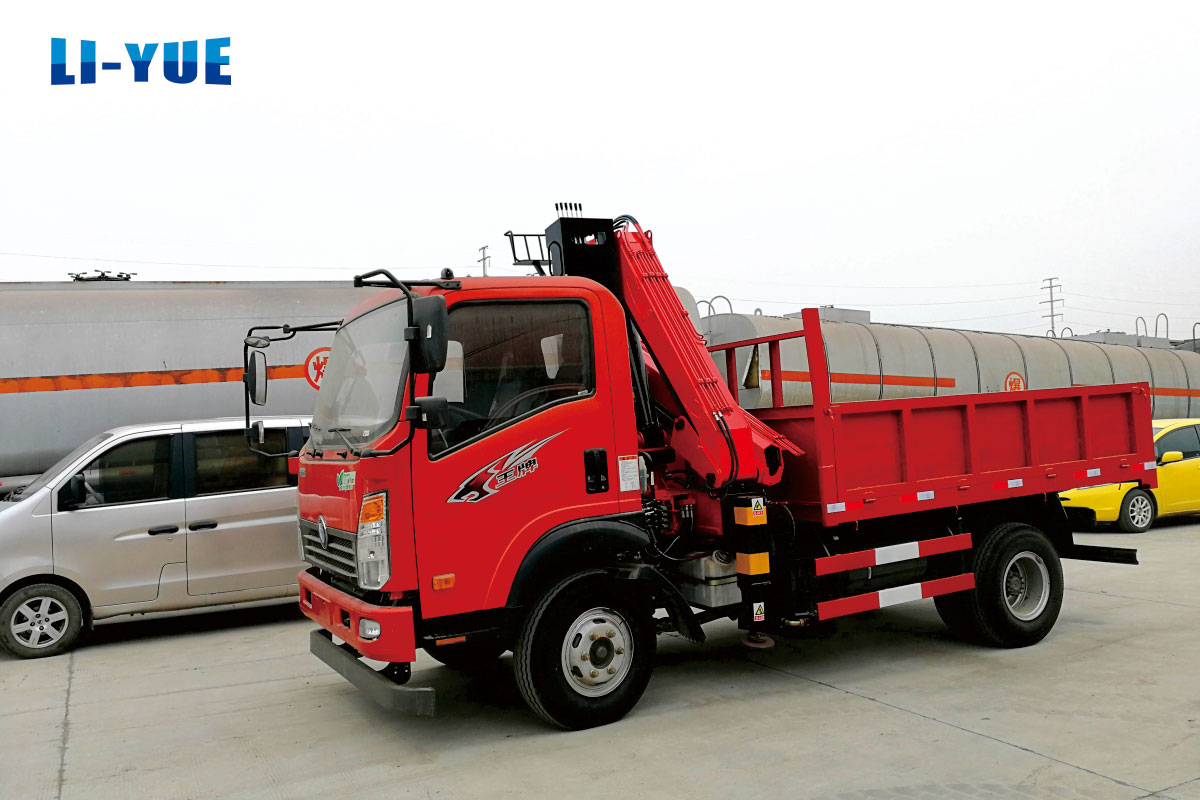

3.2 Tons Knuckle Boom Crane

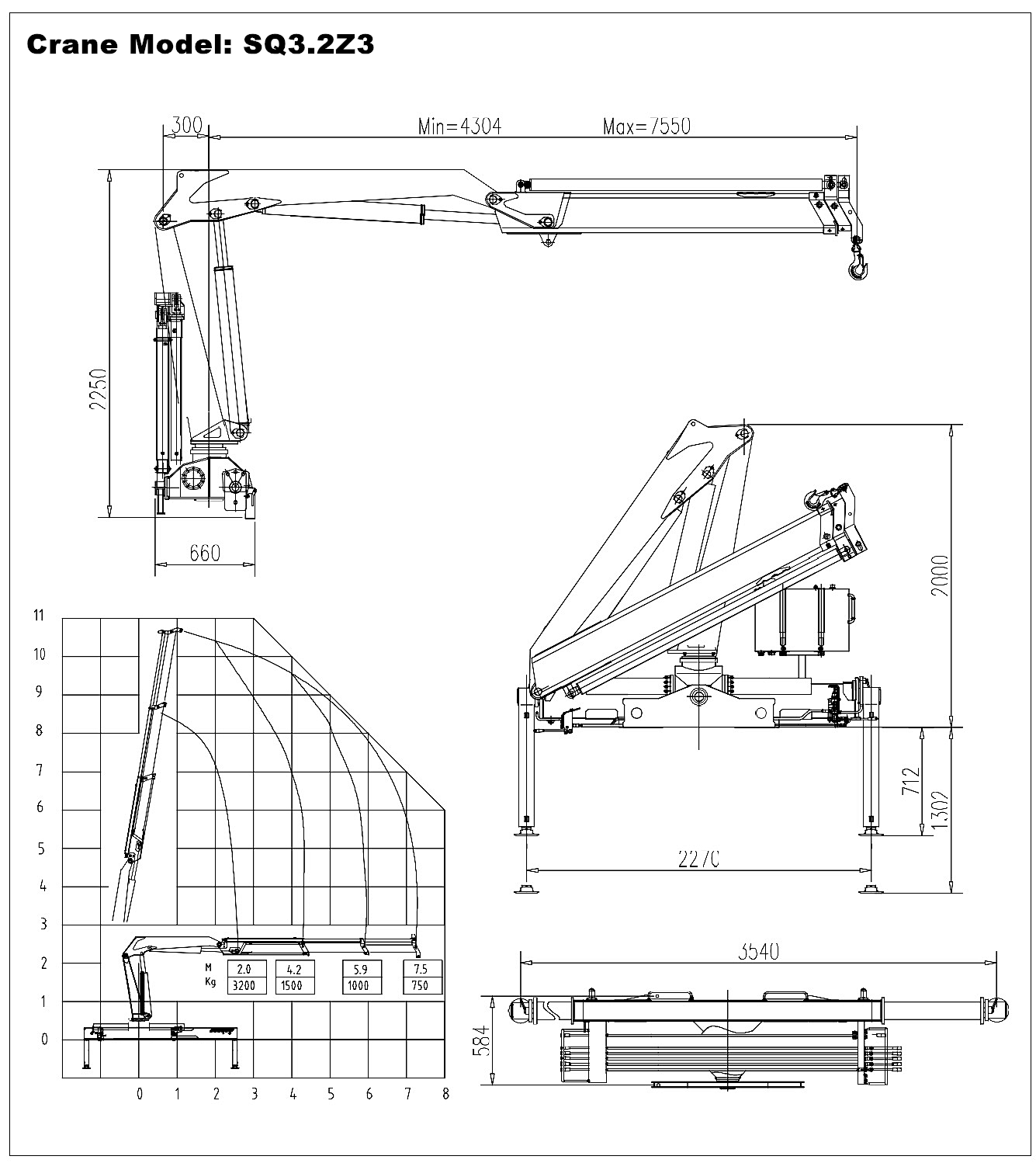

3.2 Tons Knuckle Boom Crane Main Specifications

Project Value
Crane Model SQ3.2 Z3
Max. Lifting Moment 6.4 T.m
Max. Lifting Capacity 3200 kg
Max. Lifting Height 10.6 m
Max. Working Range 7.5 m
Rotation Angle 400º
Rated System Pressure 26 MPa
Rated System Flow 25 L/ min
Installation Space 850 mm
Dead Weight 1200 kg

Loading Chart

3.2T @ 2M
1.5T @ 4M
1T @ 5.9M
[email protected]

NOTE: Rear legs are optional devices!

Please send email for more details!

We accept custiomized orders, please tell us your requirments, we will give your our professional solutions.
