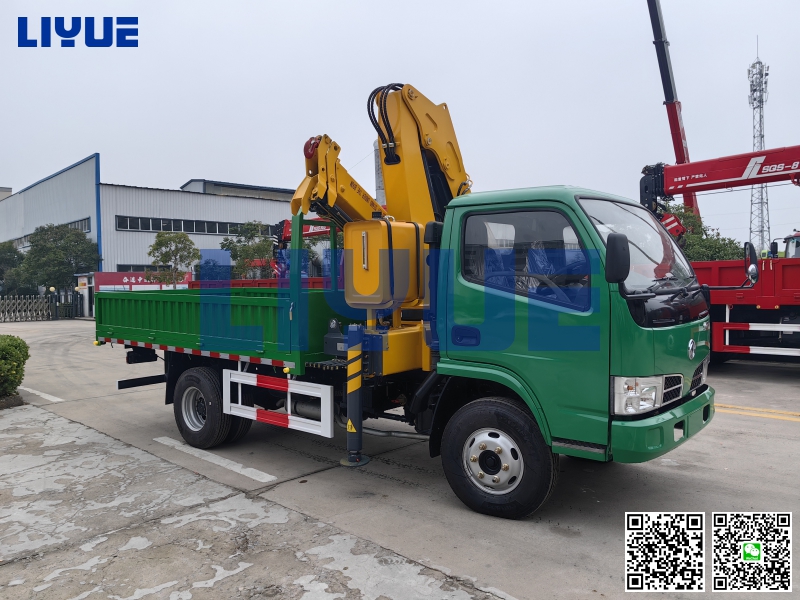

5T Folding Boom Lorry Crane

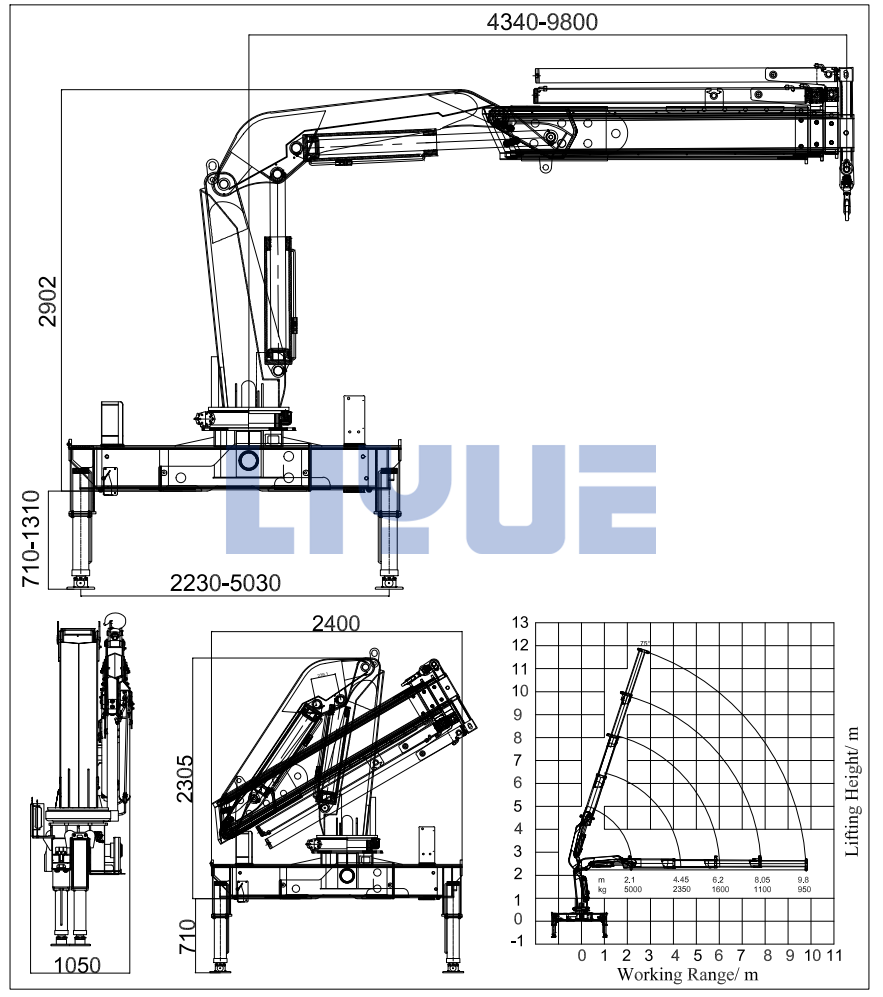

5 Tons Folding Boom Lorry Crane Main Specifications
Only Dongfeng chassis( Left/ Right steer, Euro 3/ 5 engine) is avilable in our factory.
| Project | Unit | Value |
| Crane Model | / | SQZ5A2 |
| Max. Lifting Capacity | kg | 5,000 |
| Max. Lifting Height | m | 10.6 |
| Working Radius/ Span | m | 2.1-8.2 |
| Rotation Angle | º | 360 |
| Outrigger Span | m | 2.2-5.15 |
| Hydraulic Tank Capacity | L | 85 |
| Hydraulic System Rated Pressure | Mpa | 26 |
| Installation Space | mm | 1050 |
| Max. Lifting Torque | T.m | 10.5 |
Please send email for more details!
We accept custiomized orders, please tell us your requirments, we will give your our professional solutions.
Truck Mounted Crane Details
Advanced production technology and imported accessories to ensure the stability of product quality. BECAUSE CONCENTRATION, SO PROFESSION !
Technology Strength
U-shaped boom and polygonal shaped boom, using BS70 high-strength manganeseplate, lighter, more rigid, and actively improve the lifting performance.
Single-cylinder internal telescoping method, which can be synchronized flexible, and has a strong lifting capacity.
Using anti-winding and non-rotating wire rope, make sure the crane winch has a long life working performance.
Hydraulic system uses integrated network with imported materials and complete functions.
Load sensitivity control and constant-power control system, achieving proportional speed adjustment and power adaption adjustment with no throttling loss and good energy-saving effect.

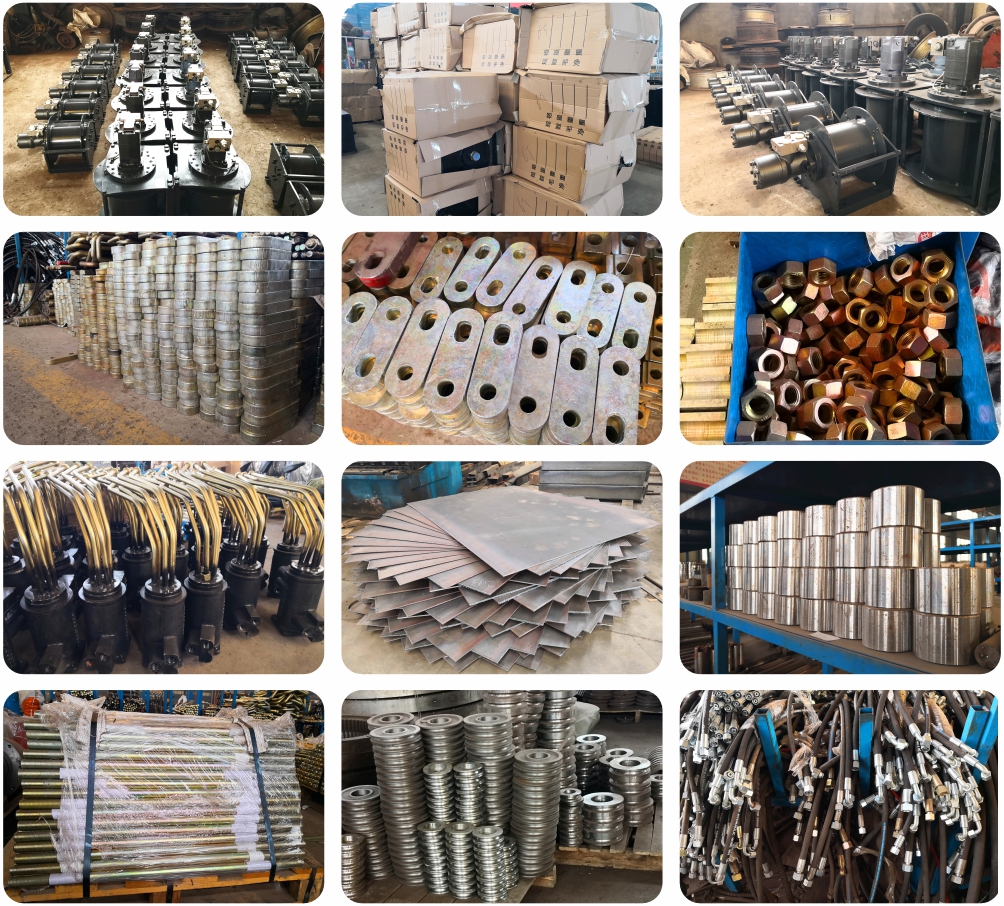

Top Quality Hydraulic Parts
By using high-quality hydraulic components from renowned brands, the quality of the crane is more guaranteed!
Our Certifications

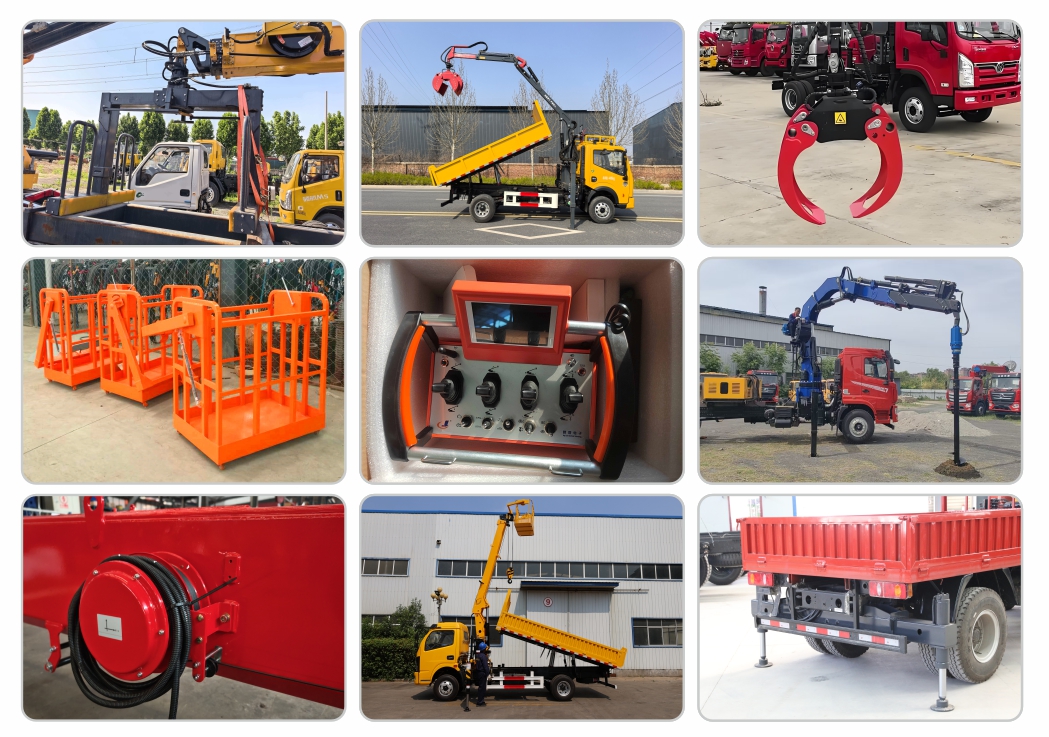

Attachments for Folding Boom Crane
Ask us for price and solutions NOW!
Your inquiry will be replied within 24 hours, and we respect your privacy.
