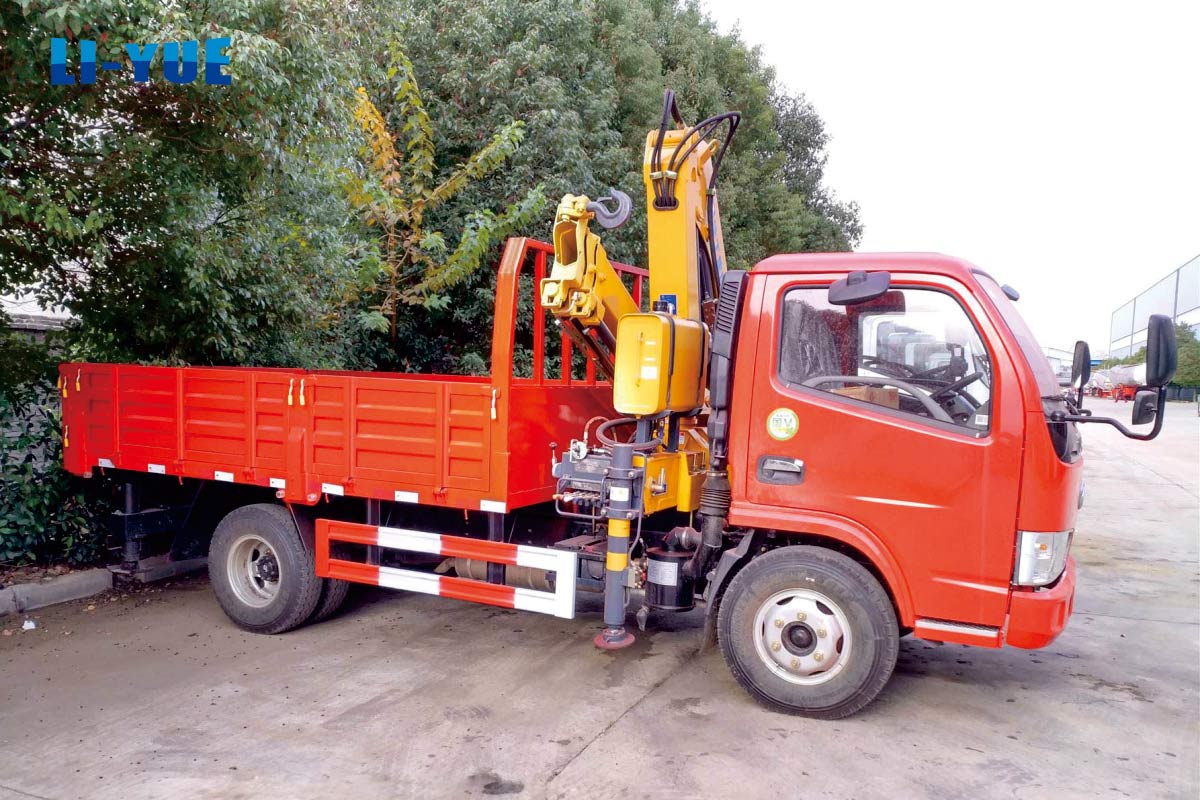

5 Tons Knuckle Boom Crane

5 Tons Knuckle Boom Crane Main Specifications

Project Value
Crane Model SQ5 Z3
Max. Lifting Moment 10 T.m
Max. Lifting Capacity 5000 kg
Max. Lifting Height 10.8 m
Max. Working Range 8.2 m
Rotation Angle 400º
Rated System Pressure 28 MPa
Rated System Flow 25 L/ min
Installation Space 950 mm
Dead Weight 1710 kg

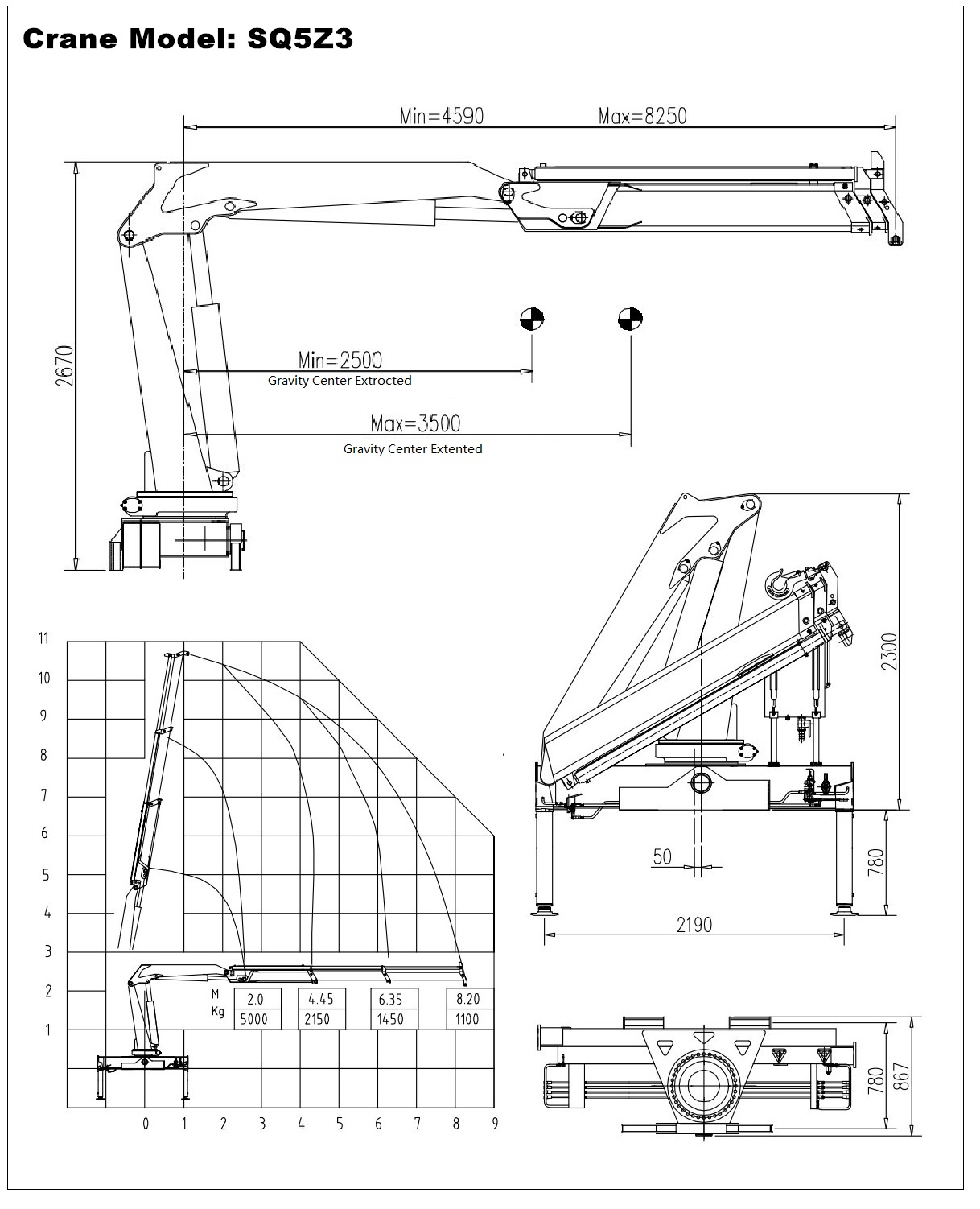

Loading Chart

5T @ 2M
2T @ 4.4M
[email protected]
[email protected]

NOTE: Rear legs are optional devices!

Please send email for more details!

We accept custiomized orders, please tell us your requirments, we will give your our professional solutions.
