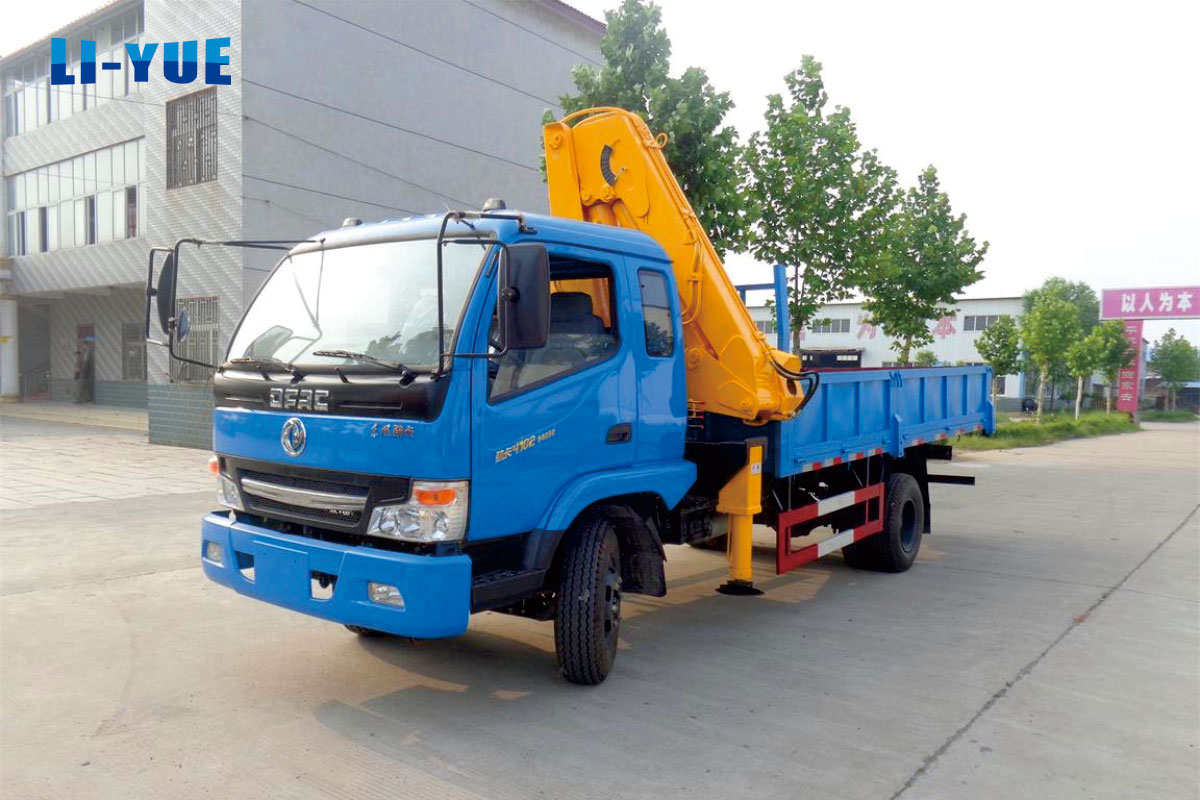

6.3 Tons Knuckle Boom Crane

6.3 Tons Knuckle Boom Crane Main Specifications

Project Value
Crane Model SQ6.3 Z3
Max. Lifting Moment 12 T.m
Max. Lifting Capacity 6300 kg
Max. Lifting Height 11.8 m
Max. Working Range 9.5 m
Rotation Angle 400º
Rated System Pressure 28 MPa
Rated System Flow 40 L/ min
Installation Space 1070 mm
Dead Weight 2150 kg

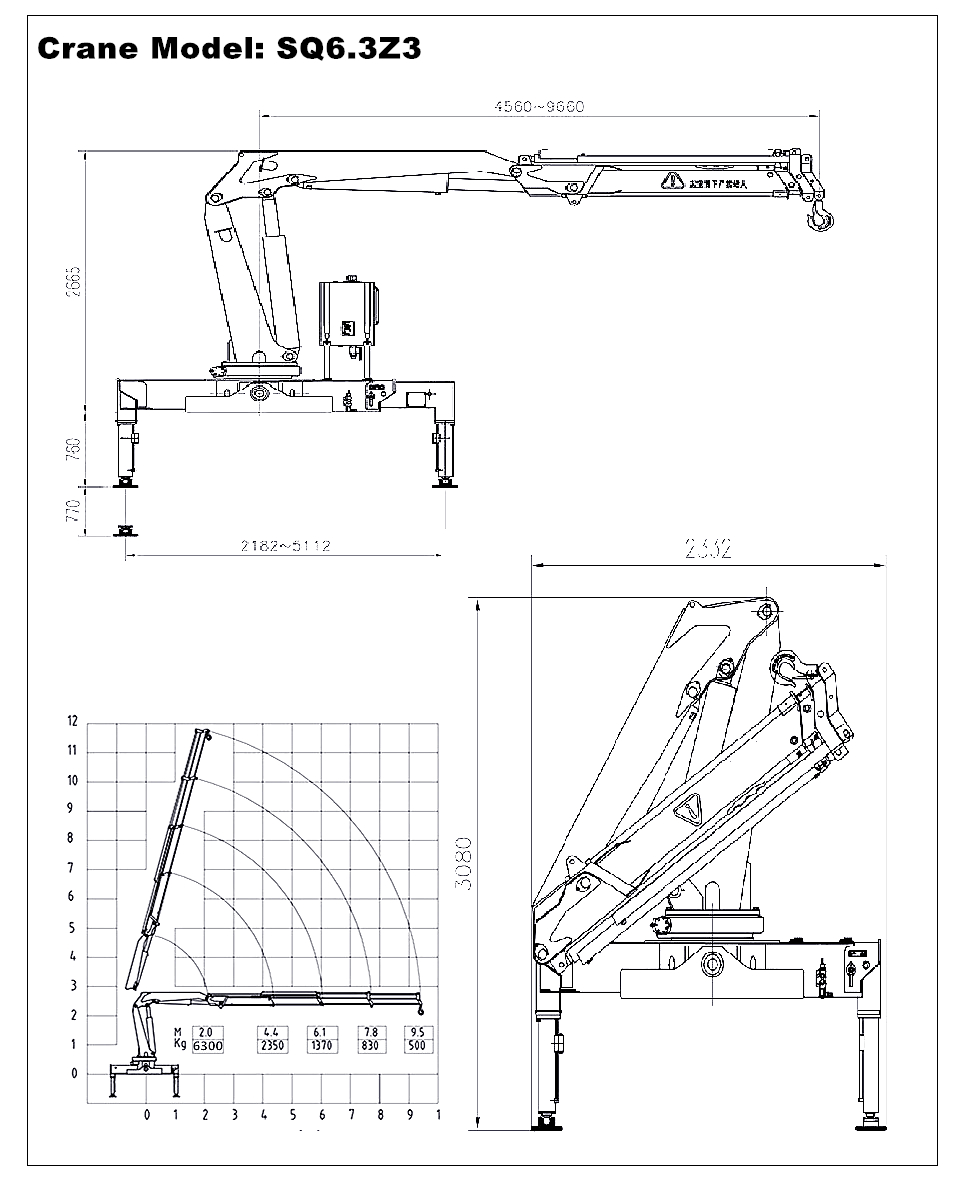

Loading Chart


6.3T @ 2M
[email protected]
[email protected] 6.1M
[email protected]
[email protected]

NOTE: Rear legs are optional devices!
