8 Tons Knuckle Boom Crane

8 Tons Knuckle Boom Crane Main Specifications

Project Value

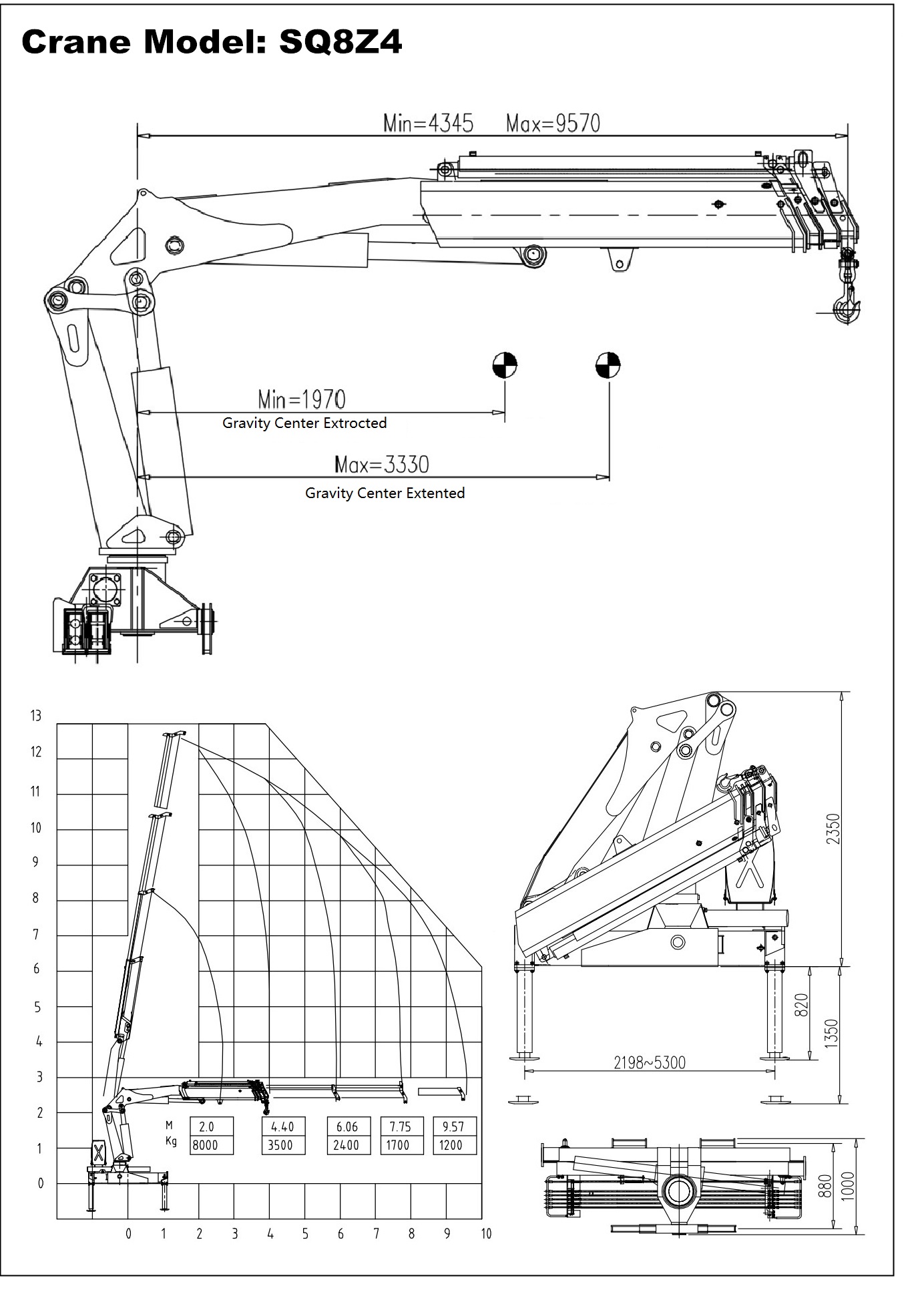

Crane Model SQ 8 Z4
Max. Lifting Moment 16 T.m
Max. Lifting Capacity 8000 kg
Max. Lifting Height 12.8 m
Max. Working Range 9.5 m
Rotation Angle 400º
Rated System Pressure 28 MPa
Rated System Flow 40 L/ min
Installation Space 1150 mm
Dead Weight 2870 kg

Loading Chart


8T @ 2M
[email protected]
2.4T @ 6M
[email protected]
[email protected]

NOTE: Rear legs are optional devices!

Please send email for more details!

We accept custiomized orders, please tell us your requirments, we will give your our professional solutions.
