3-25 Tons Marine Crane

3- 25 Tons Marine Crane/ Ship Crane Main Specifications

Model Lifting Capacity/ kg Intallation Space/ mm Wire Rope/ Dia* Length
LY 3.2 3200 850 9mm* 35m
LY 4 4000 850 9mm* 35m
LY 5 5000 850 10mm* 35m
LY 6.3  6300 900 10mm* 40m
LY 8 8000 900 11mm* 75m
LY 10 10000 1150 12mm* 75m
LY 12 12000 1150 12mm* 80m
LY 14 14000 1350 13mm* 80m
LY 16 16000 1350 15mm* 85m
LY 20 20000 1450 15mm* 95m
LY 25 25000 1500 16mm* 100m

Please send email for more details!

We accept custiomized orders, please tell us your requirments, we will give your our professional solutions.


Marine Crane Details

                  Adopt advanced production technology and imported accessories to ensure the stability of product quality.                        BECAUSE CONCENTRATION, SO PROFESSION !

Technology Strength

  • U-shaped boom and polygonal shaped boom, using BS70 high-strength manganeseplate, lighter, more rigid, and actively improve the lifting performance.

  • Single-cylinder internal telescoping method, which can be synchronized flexible, and has a strong lifting capacity.

  • Using anti-winding and non-rotating wire rope, make sure the crane winch has a long life working performance.

  • Hydraulic system uses integrated network with imported materials and complete functions.

  • Load sensitivity control and constant-power control system, achieving proportional speed adjustment and power adaption adjustment with no throttling loss and good energy-saving effect.

Transportation Methods

Professional export packing make sure the crane arrives safely, no matter the long transportation.

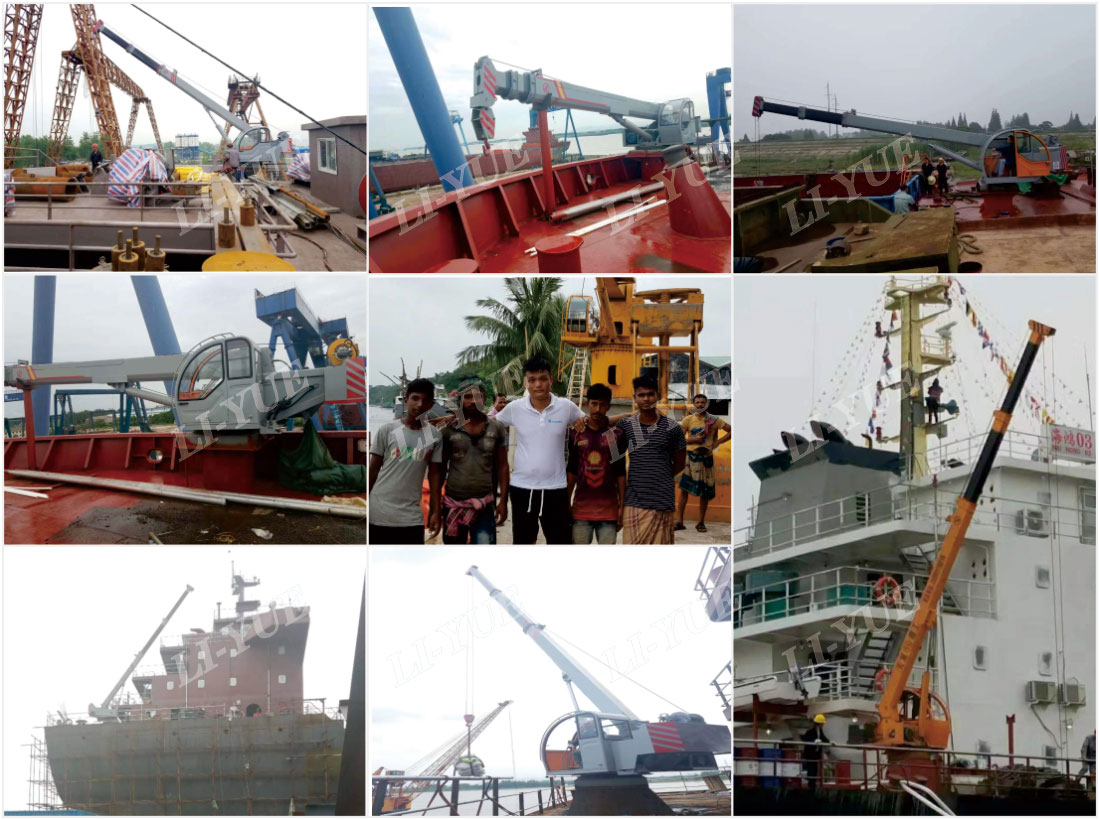

Customer Visiting
